Modular Buildings.

Office cabin

Offices. Classrooms. Toilets. Showers. Storage. Mess Rooms.

Office and Crew Cabins

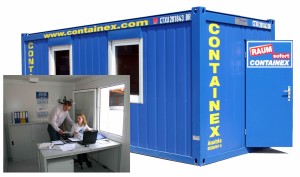

Office cabin
View larger photo

Inside
Length
5860 mm
Width
2240 mm
Height
2340 mm
Outside
Length
6055 mm
Width
2435 mm
Height
2591 mm
Weight
1924 kg

Our office and crew cabins match ISO dimensions and therefore have many advantages They consist of a robust frame construction and interchangeable wall panels.

These modular units can be linked together, side by side or up to three high. The interchangeable wall panels allow you to add extra units at a later date and insert windows and doors wherever you require.

Sanitary cabin
View larger photo

Inside
Length
5880 mm
Width
2260 mm
Height
2340 mm
Outside
Length
6055 mm
Width
2435 mm
Height
2591 mm
Weight
2490 kg

Galvanised steel sheet, coated on both sides, as well as PU-foam heat and sound insulation of the walls and the cement bound chipboard floor plate guarantee an extremly long product life-span. They are fully equipped and immediately ready for use. Separate shower and toilet cabins in various sizes can also be supplied on request.

  • Solid steel frame with corner casts and fork-lift pockets
  • CEE exterior sockets, recessed
  • high-quality heat and sound insulation
  • various extra equipment possible

The Clean Solution: 5 WC cabin with flush system.

WC cabin 5
View larger photo

Inside
Length
1055 mm
Width
1255 mm
Height
2200 mm
Outside
Length
1200 mm
Width
1400 mm
Height
2540 mm
Weight
350 kg


Ideal for events and on construction sites;

Galvanised steel sheet, coated on both sides; the PU heat and sound insulation as well as the alu checker plate floor guarantee an extremely long life-span of the product, also under the severest conditions.

The clean solution: Double WC/Shower cabin with flush system

WC cabin (double)
View larger photo

Inside
Length
2255 mm
Width
1255 mm
Height
2200 mm
Outside
Length
2400 mm
Width
1400 mm
Height
2540 mm
Weight
570 kg


Ideal for events and on construction sites.

Galvanised steel sheet, coated on both sides; the PU heat and sound insulation as well as the alu checker plate floor guarantee an extremely long life-span of the product, also under the severest conditions.

 PLEASE SEE CONTAINERS FOR STORAGE MODULES
